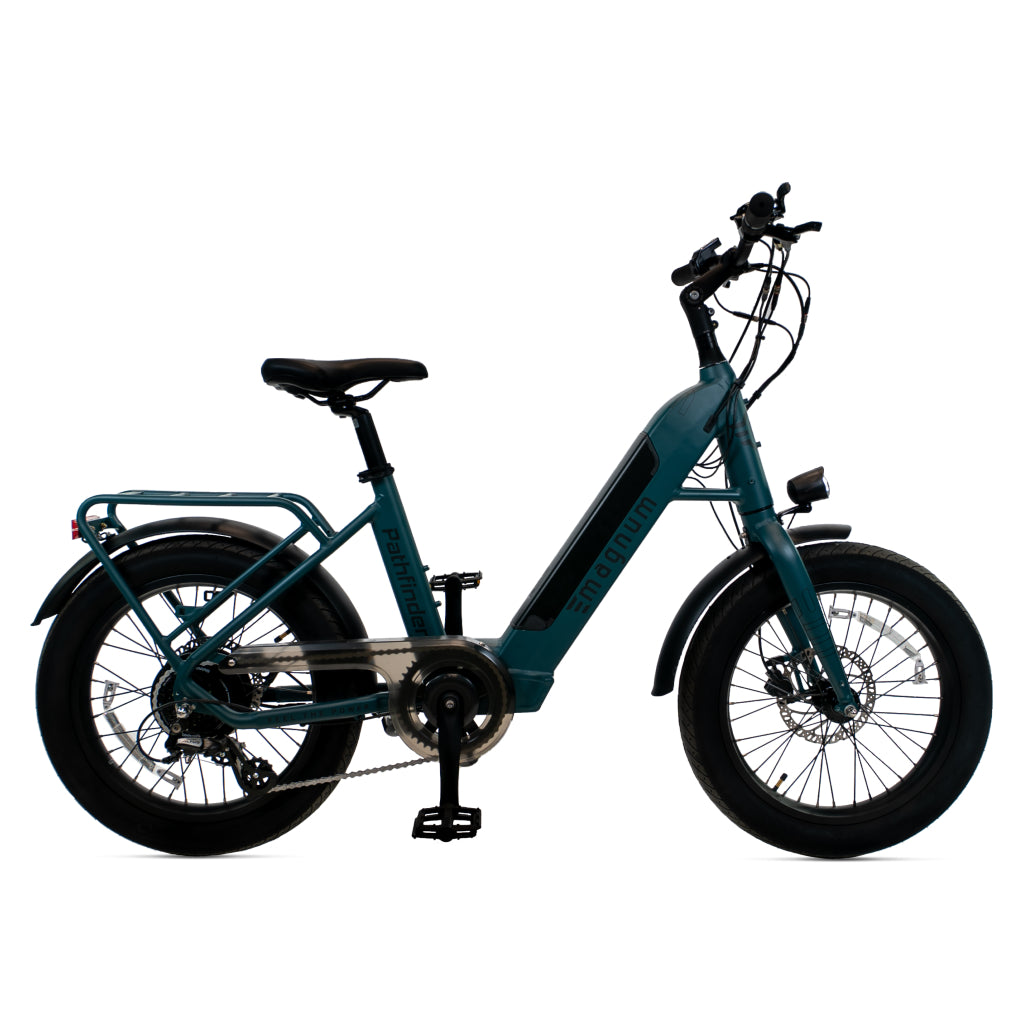

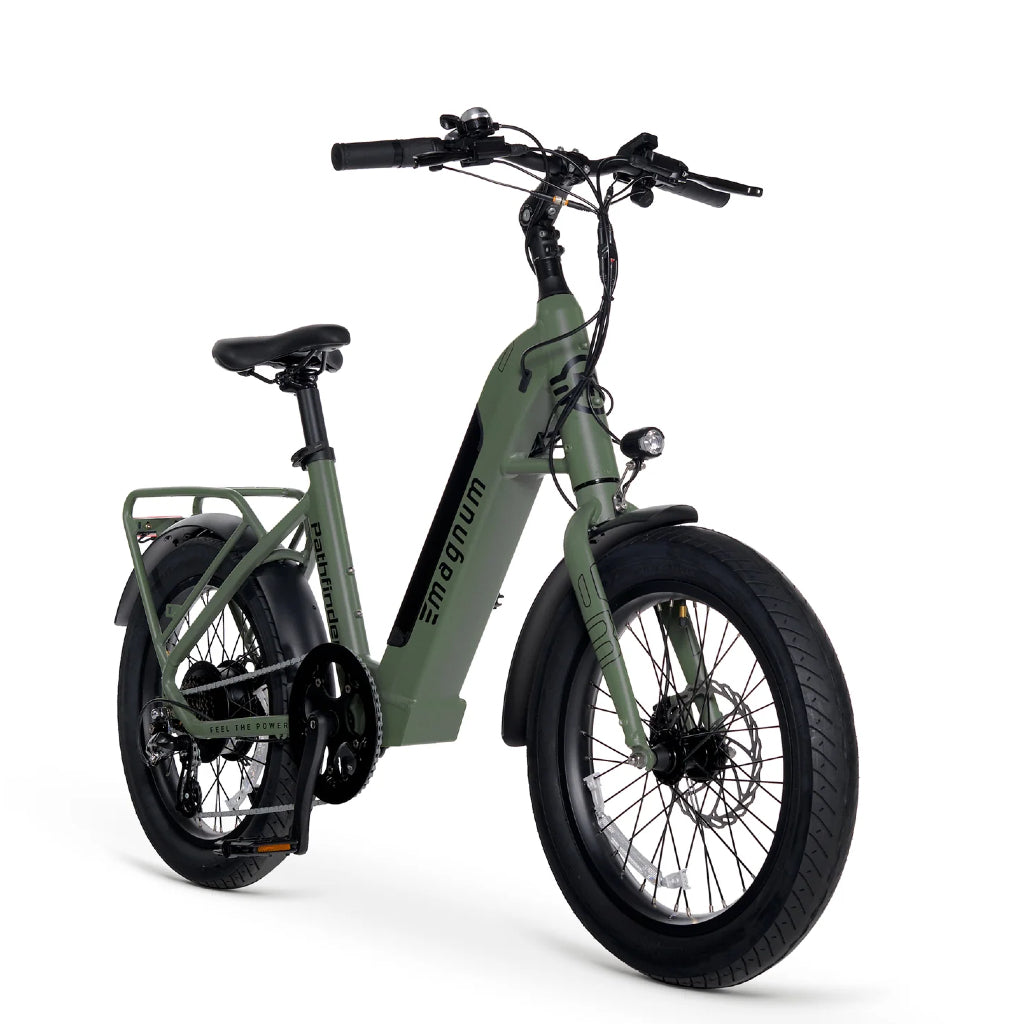

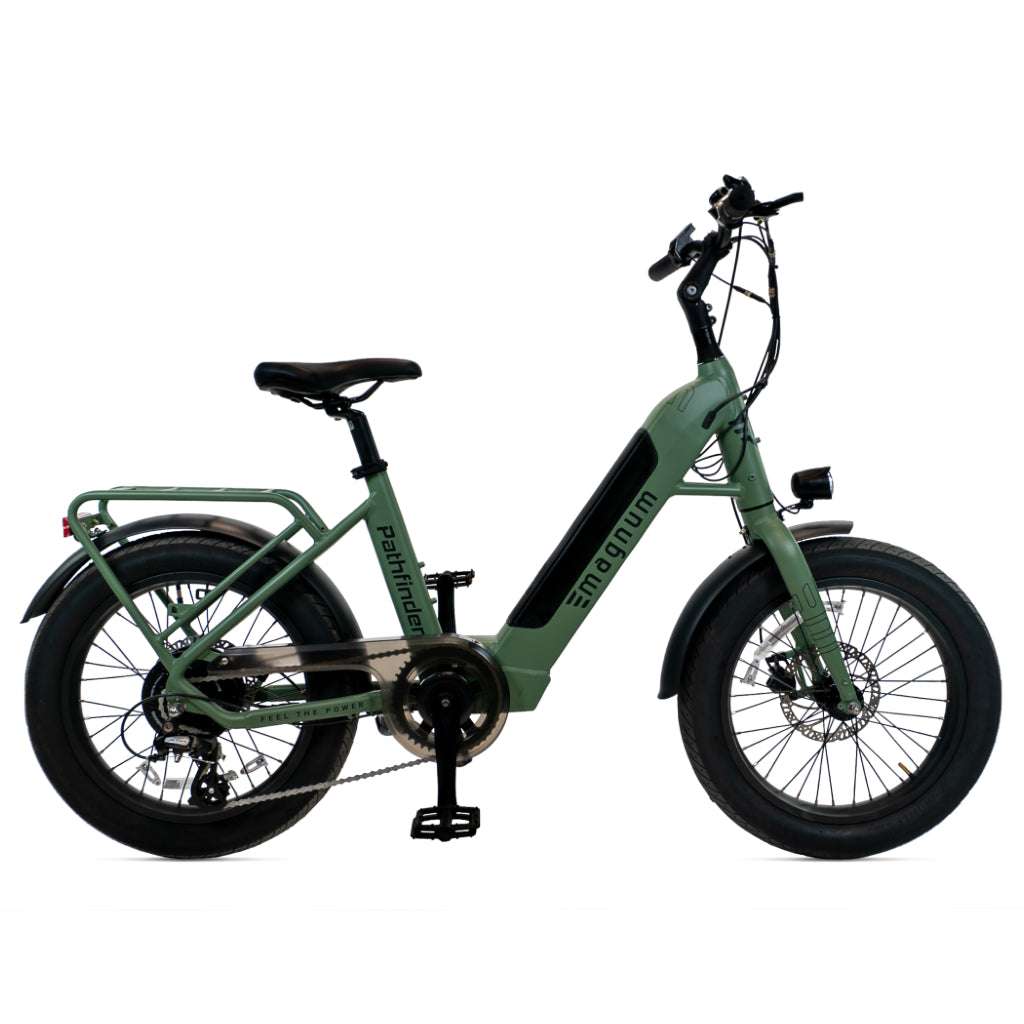

Magnum Pathfinder 500

Sale price
$1,299
Regular price
$1,999
You save
35%
Taxes and shipping calculated at checkout

Color: Ocean

Pickup currently unavailable at Amherst Store

Check availability at other stores
Have a question?

Work hard and play harder! The Magnum Pathfinder 500 is an e-bike that suits your active lifestyle. Whether it's used for recreation, exercise, commuting, or for the pure joy of power-assisted movement, the unisex Magnum Pathfinder 500 with its step-through frame will match your physique and your skills, and exceed your expectations.

The heart of The Pathfinder 500, the long-range 48V / 13Ah / 624Wh battery blends in smoothly with the frame for a sleek look. It powers up to 50 miles, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.

The Pathfinder’s 3” fat tires absorb shock and heighten stability. They will improve handling over unexpected potholes and uneven pavement, providing extra traction, control, and comfort.

Electronic Details

  • Motor Brand: Vision In-House

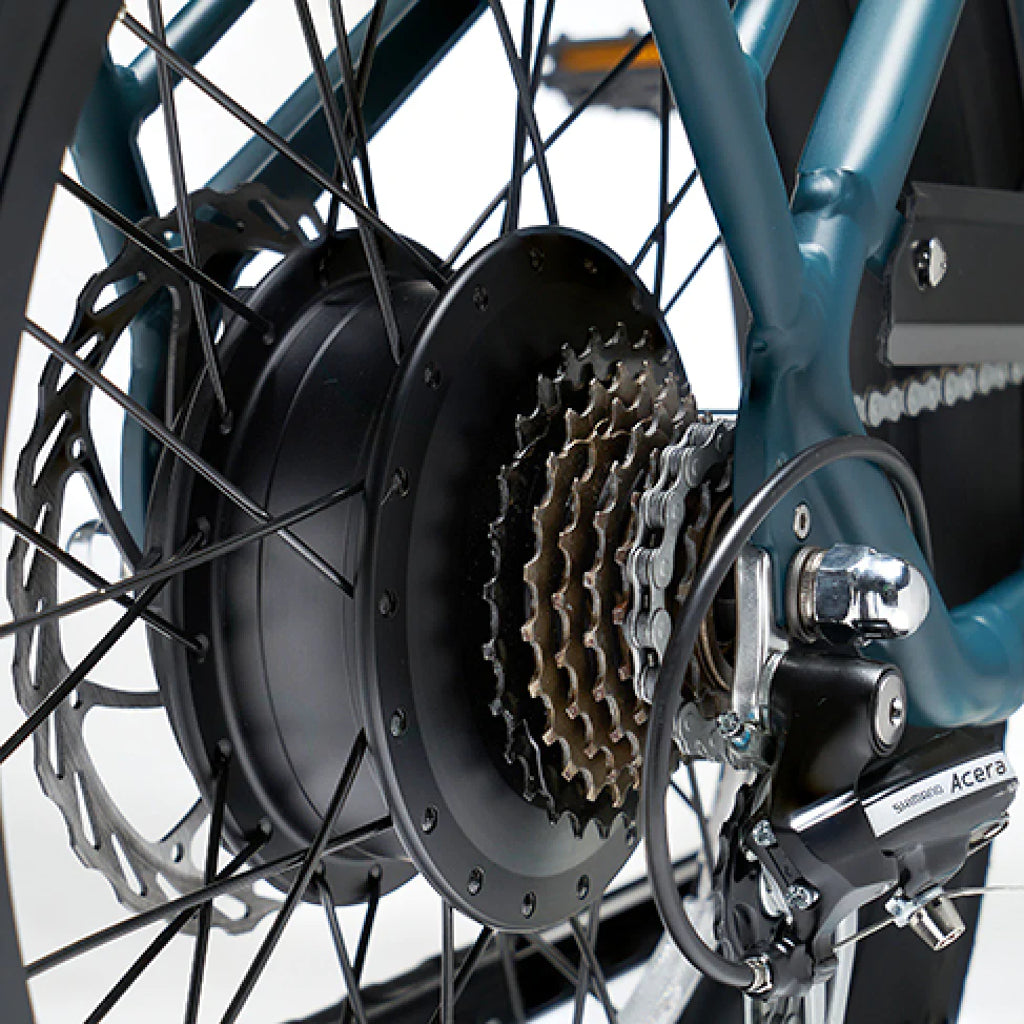

  • Motor Type: Rear Hub-Drive
  • Motor Nominal Output: 500 Watts
  • Motor Peak Output: ~650 Watts
  • Battery Brand: LG Cells
  • Battery Voltage: 48 Volts
  • Battery Ah: 13Ah
  • Battery Wh: 624Wh
  • Battery Chemistry: Li-NMC
  • Battery Charge Time (from empty): 6.5 Hours
  • Minimum Range: 25 Miles (40 Kilometers)
  • Maximum Range: 50 miles (80 Kilometers)
  • Display Type: Vision LCD Display
  • Display Readouts: Battery Charge Level (Infographic with 5 Bars), Current Speed, Assist Level (0-5, Class 1; 0-6, Class 2 & 3), Odometer, Trip Distance, Average Speed, Max Speed
  • Drive Mode: Cadence Sensing Pedal Assist, Twist Throttle, Walk Mode
  • Top Speed: 25 mph with Pedal Assist, 20 mph with Throttle
  • Lights: Integrated Front And Rear Lights

Mechanical Details

  • Frame material: Aluminum Alloy
  • Frame size: 15.75” (40 cm)
  • Fork Details: Rigid Aluminum Alloy
  • Gearing details: Shimano 7-Speed
  • Shifter Details: Shimano 7-Speed
  • Crank: Aluminum Alloy, 44T, 165mm
  • Pedals: Wide Plastic Platform with Reflectors
  • Stem: Adjustable Aluminum Alloy
  • Brakes: Hydraulic Disc Brakes
  • Grips: Flat Rubber, Pressure Fit, Half-Grip on Right for Twist Throttle
  • Saddle: Velo Gel Comfort
  • Tire Brand: CST Big Boat 20 x 3.0
  • Wheel size: 20"
  • Fenders: Front and Rear Included
  • Chain: KMC Z-Chain

Measurements

  • Seat Tube: 15.75" (40 cm)
  • Reach: 17" (43 cm)
  • Stand Over Height: 16" (40 cm)
  • Virtual Top Tube Length: 24" (61 cm)
  • Min Saddle Height: 20.5" (52 cm)
  • Max Saddle Height: 29.5" (75 cm)
  • Width: 24" (61 cm)
  • Wheelbase: 43" (109 cm)
  • Length: 63.75" (162 cm)
  • Total Weight: 62 lbs (28 kg)
  • Battery Weight: 7.5 lbs (3.4 kg)
  • Recommended Minimum Rider Height: 4’10”

What's Included

  • Kickstand: Includes Center-Mounted Single Side Adjustable Length Kickstand
  • Bell: Includes Bell
  • Charger: 48V / 2A
  • Front Rack: Optional Front Rack (Not Included)
  • Rear Rack: Includes Rear Rack
  • Fenders: Front and Rear Fenders
  • Accessory Mounts: Bottle Cage, Front Rack

Video

Brand Magnum
Model Magnum Pathfinder 500
