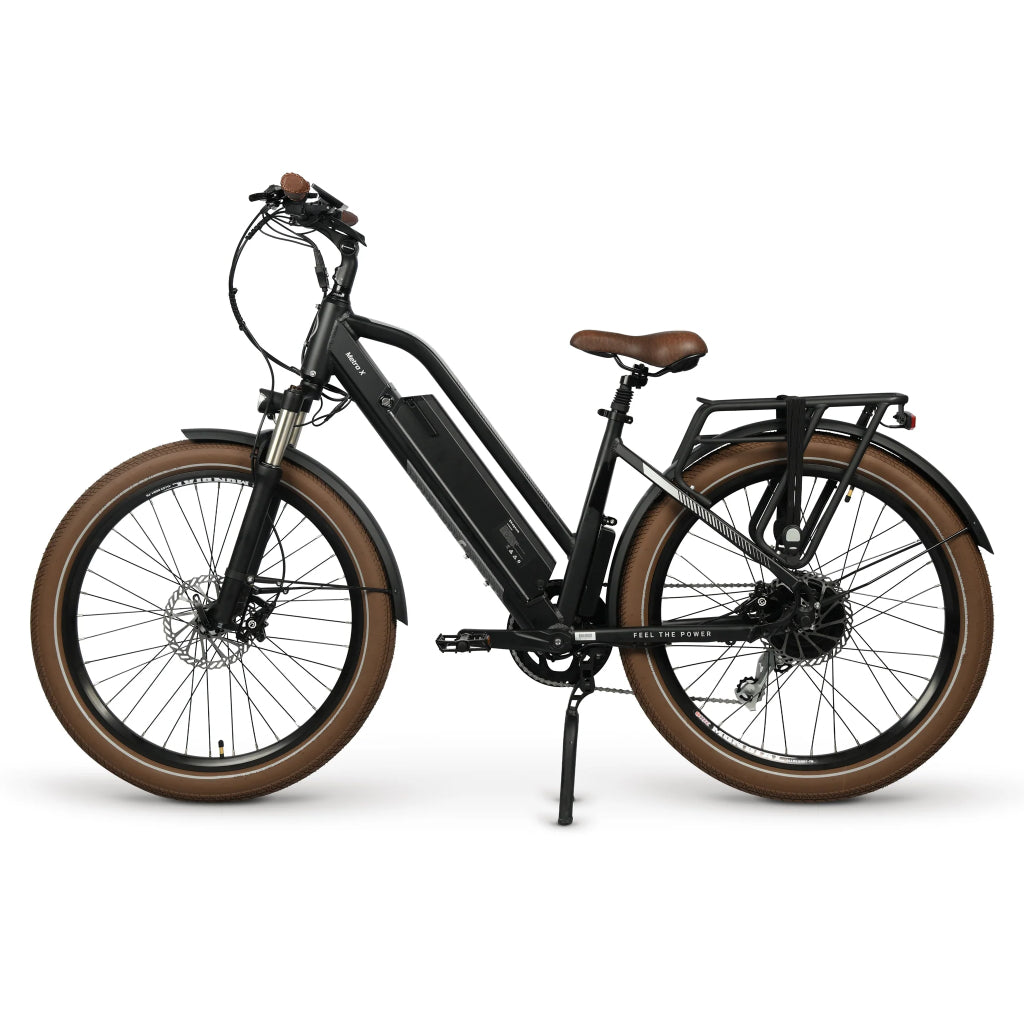

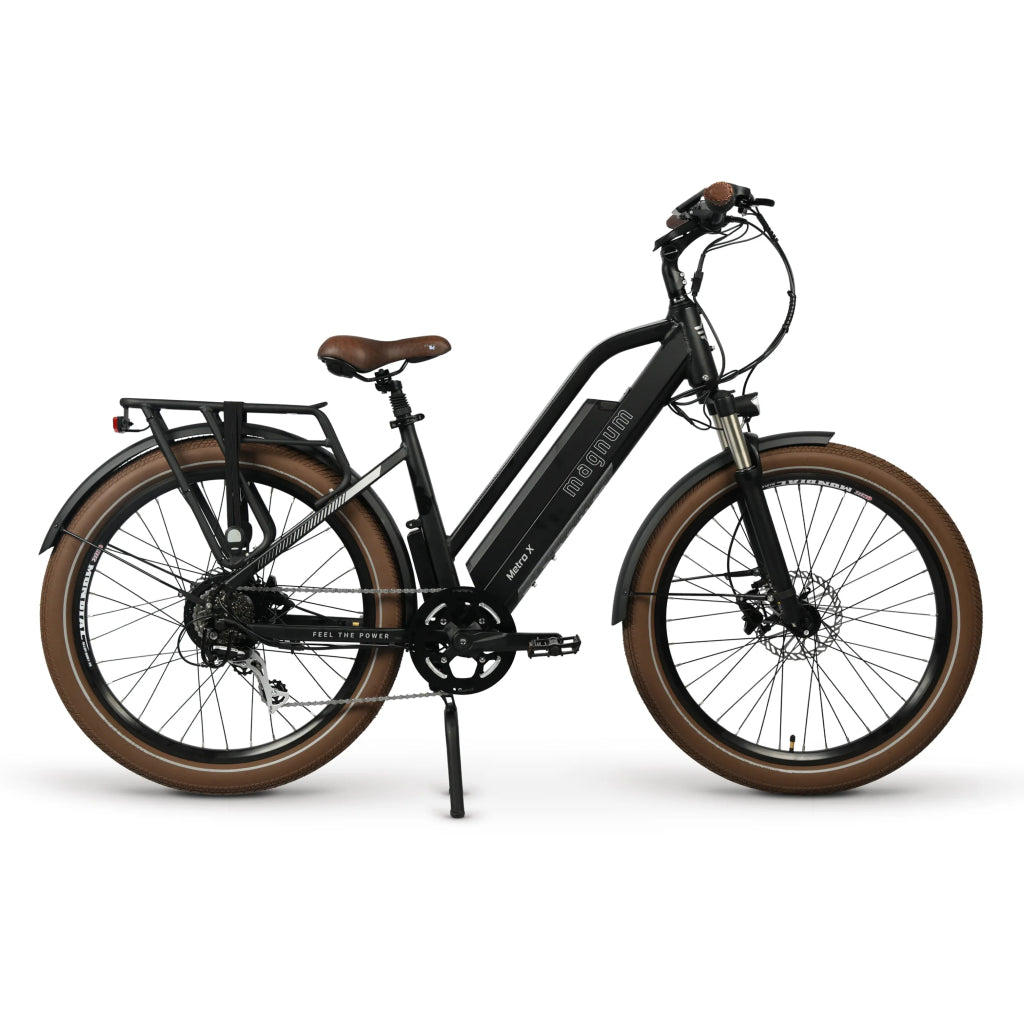

Magnum Metro X

The Magnum Metro X does it all! It's a versatile touring/all-road electric bike built for road riding, commuting, recreational riding, and gravel trails. It has a step-thru frame for easy mounting and dismounting, and the 48V 500W power system offers both pedal assist and throttle mode. Long-range (up to 50 miles) battery for the freedom and power to tackle longer rides. The step-through frame is easy to mount and dismount, is made of strong and lightweight aluminum, and is ideal for riders with mobility or flexibility issues.

Electronic Details

• Motor Brand: Bafang
• Motor Type: Geared Rear Hub
• Motor Nominal Output: 500 Watts
• Motor Peak Output: 750 Watts
• Battery Brand: Samsung Cells
• Battery Voltage: 48 Volts
• Battery Ah: 15Ah
• Battery Wh: 720Wh
• Battery Chemistry: Li-NMC
• Battery Charge Time (from empty): 7.5 Hours
• Minimum Range: 30 Miles (48 Kilometers)
• Maximum Range: 50 miles (80 Kilometers)
• Display Type: Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD
• Display Readouts: Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
• Drive Mode: Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
• Top Speed: Up to 28 mph with Pedal Assist, 20 mph with Throttle
• Lights: Integrated front and rear lights controlled from the display / Brake Light activated when braking

Mechanical Details

• Frame material: Aluminum Alloy
• Frame size: 17.25” (44 cm)
• Fork Details: Suspension Fork with Lockout and Preload Adjust
• Gearing details: Shimano 7-Speed
• Shifter Details: Shimano 7-Speed
• Crank; Aluminum Alloy, 52T, 170mm
• Pedals: Wellgo
• Stem: Promax Tool-Free Adjustable
• Brakes: Clarks Hydraulic Disc Brakes
• Grips: Brown Faux Leather
• Saddle: Selle Royal Polygel
• Tire Brand: Innova 26 x 2.4
• Wheel size: 26”
• Fenders: Front and Rear Included
• Chain: KMC

Measurements

• Seat Tube: 17.25” (44 cm)
• Reach: 16.5” (42 cm)
• Stand Over Height: 26.75” (68 cm)
• Virtual Top Tube Length: 23.25” (59 cm)
• Min Saddle Height: 23.25” (59 cm)
• Max Saddle Height: 29” (74 cm)
• Width: 27.25” (69 cm)
• Wheelbase: 44” (112 cm)
• Length: 71” (180 cm)
• Total Weight: 62 lbs (28 kg)
• Battery Weight: 9 lbs (4.1 kg)
• Recommended Minimum Rider Height: 5’0”

What's Included

• Kickstand: Double-Leg
• Bell: No
• Charger: 48V/2A
• Front Rack: Optional Front Rack (Not Included)
• Rear Rack: Included
• Fenders: Front and Rear
• Accessory Mounts: Front Carrier, Front and Rear Fender, Rear Rack
