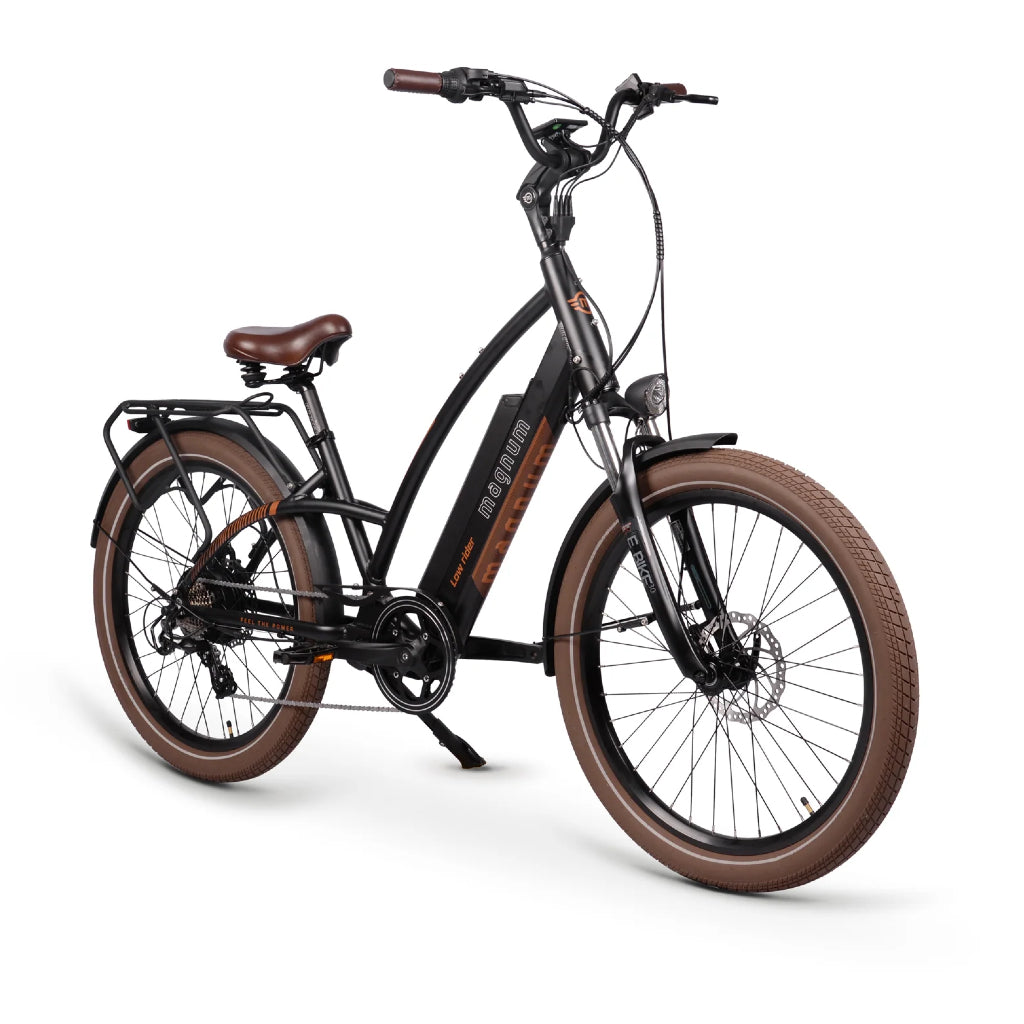

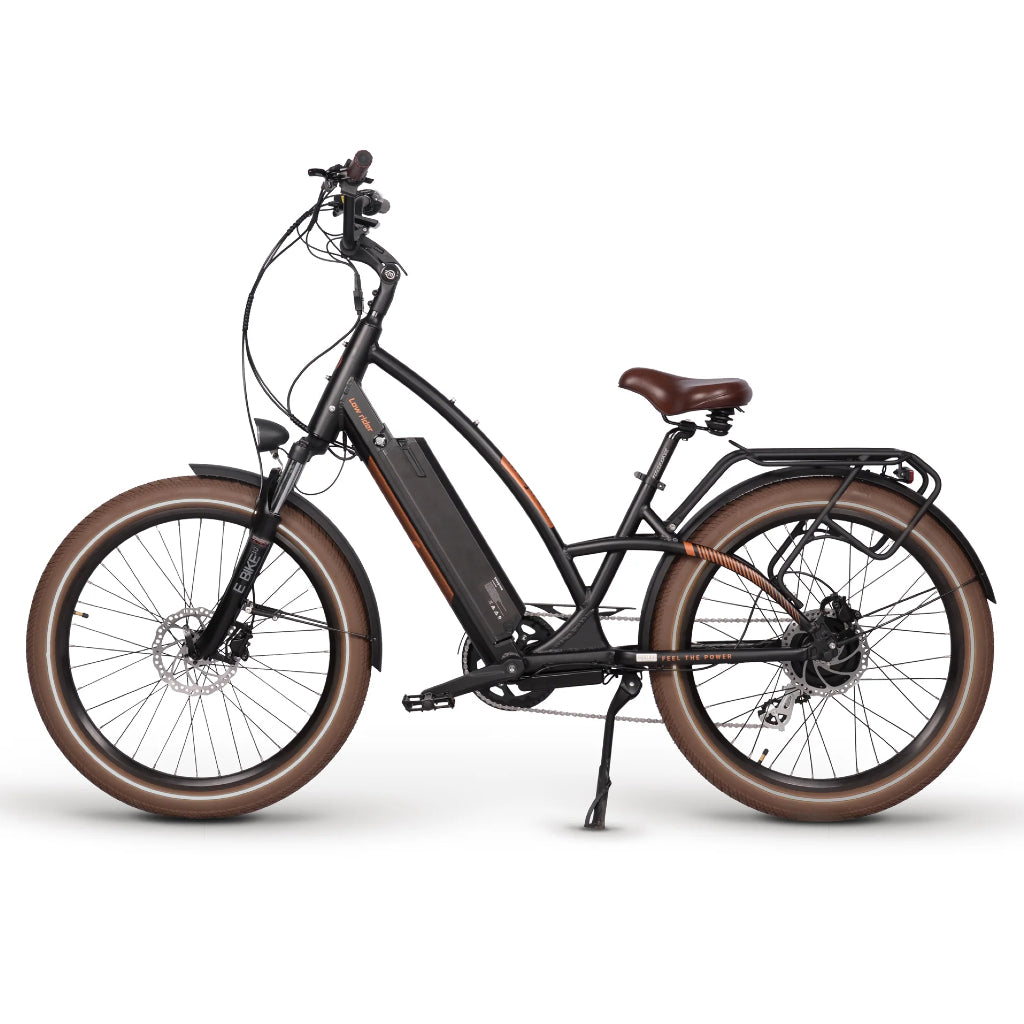

Magnum Low Rider 2.0

Cruise with comfort and style! The Magnum Low Rider is an easy-to-mount low-step beach cruiser-style electric bike well suited for urban cycling. The Low rider’s large, 48V battery can handle all the demands of a cargo bike, and it will power a range of up to 50 miles, depending on cargo weight, wind, and terrain variables. The ergonomic, pedal-forward lowrider position lets you cruise the roads in comfort and style. The comfortable riding position places the rider sitting slightly reclined and closer to the ground with pedals out front. Large, plush saddles and wide tires for stability and comfort complete the stylish, carefree Magnum Cruiser experience.

Electric Details

• Motor Brand: Bafang
• Motor Type: Rear Hub-Drive
• Motor Nominal Output: 500 Watts
• Motor Peak Output: 750 Watts
• Battery Brand: Samsung Cells
• Battery Voltage: 48 Volts
• Battery Ah: 15Ah
• Battery Wh: 720Wh
• Battery Chemistry: Li-NMC
• Battery Charge Time (from empty): 7.5 Hours
• Minimum Range: 30 Miles (48 Kilometers)
• Maximum Range: 50 miles (80 Kilometers)
• Display Type: Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD
• Display Readouts: Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
• Drive Mode: Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
• Top Speed: 25 mph with Pedal Assist, 20 mph with Throttle
• Lights: Integrated Front and Rear Lights

Mechanical Details

• Frame material: Aluminum Alloy
• Frame size: 18.25” (46 cm)
• Fork Details: RST E-Bike 30 Suspension Fork with Lockout and Preload Adjustment
• Gearing details: Shimano 7-Speed
• Shifter Details: Shimano 7-Speed
• Crank: Aluminum Alloy, 52T, 170mm
• Pedals: Wellgo
• Stem: Tool-Free Adjustable
• Brakes: Hydraulic Disc Brakes
• Grips: Ergonomic Faux Leather
• Tire Brand: 26 x 2.4 Brown w/Reflective
• Wheel size: 26”
• Fenders: Front and Rear Included
• Chain: KMC

Measurements

• Seat Tube: 18.25” (46.5)
• Reach: 11.25” (28.5)
• Stand Over Height: 26.75” (68)
• Virtual Top Tube Length: 27.25” (69)
• Min Saddle Height: 24.5” (62)
• Max Saddle Height: 29.25” (74.5)
• Width: 28.25” (72)
• Wheelbase: 49.25” (125)
• Length: 76.5” (194)
• Total Weight: 65 lbs (29.5 kg)
• Battery Weight: 9 lbs. (4 kg)
• Recommended Minimum Rider Height: 5’4” (162.5 cm)

What's Included

• Kickstand: Center-Mount, Left-Side, Adjustable
• Bell: No
• Charger: 56V / 2A
• Front Rack: Optional Front Rack (Not Included)
• Rear Rack: Included
• Fenders: Front and Rear Included
• Accessory Mounts: Heat Tube Mount, Fender Mount, Rear Rack Mount, Top Tube Mount
